Sliderule data I/O

This notebook will highlight analyzing various coincident elevation measurements. We will find regions with and use slideruleearth.io service to retrieve ICESat-2 and GEDI point elevation measurements.

Note

Keep in mind, these measurements are from different sensor types, close in time, but not at exactly the same time. All measurements also have uncertainties, so we do not expect perfect agreement.

import coincident
from mpl_toolkits.axes_grid1.inset_locator import inset_axes
import matplotlib.pyplot as plt
import numpy as np

# For testing OR if you have access to a private cluster set that here
# https://slideruleearth.io/web/rtd/developer_guide/articles/private_clusters.html#private-clusters
# sliderule.init(verbose=True, organization="uw", desired_nodes=5, bypass_dns=True, time_to_live=60)

/home/docs/checkouts/readthedocs.org/user_builds/coincident/checkouts/v0.5/src/coincident/io/download.py:27: TqdmExperimentalWarning: Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)
  from tqdm.autonotebook import tqdm

%matplotlib inline
# %config InlineBackend.figure_format = 'retina'

Identify a primary dataset

Start by loading a full resolution polygon of a 3DEP LiDAR workunit which has a known start_datetime and end_datatime:

workunit = "CO_WestCentral_2019"
df_wesm = coincident.search.wesm.read_wesm_csv()
gf_lidar = coincident.search.wesm.load_by_fid(
    df_wesm[df_wesm.workunit == workunit].index
)
gf_lidar

	workunit	workunit_id	project	project_id	start_datetime	end_datetime	ql	spec	p_method	dem_gsd_meters	...	seamless_category	seamless_reason	lpc_link	sourcedem_link	metadata_link	geometry	collection	datetime	dayofyear	duration
0	CO_WestCentral_2019	175984	CO_WestCentral_2019_A19	175987	2019-08-21	2019-09-19	QL 2	USGS Lidar Base Specification 1.3	linear-mode lidar	1.0	...	Meets	Meets 3DEP seamless DEM requirements	https://rockyweb.usgs.gov/vdelivery/Datasets/S...	https://prd-tnm.s3.amazonaws.com/index.html?pr...	https://prd-tnm.s3.amazonaws.com/index.html?pr...	MULTIPOLYGON (((-106.13571 38.4146, -106.1702 ...	3DEP	2019-09-04 12:00:00	247	29

1 rows × 33 columns

Search secondary datasets

Provide a list that will be searched in order. The list contains tuples of dataset aliases and the temporal pad in days to search before the primary dataset start and end dates

secondary_datasets = [
    ("gedi", 40),  # +/- 40 days from lidar
    ("icesat-2", 60),  # +/- 60 days from lidar
]

gf_gedi, gf_is2 = coincident.search.cascading_search(
    gf_lidar,
    secondary_datasets,
    min_overlap_area=30,  # km^2
)

Get ICESat-2 ATL06 Data

We’ve identified 7 granules of icesat-2 data to examine, but there is no need to work with the entire granule, which spans a huge geographic extent. Instead we’ll retrieve a subset of elevation values in the area of interest for each granule.

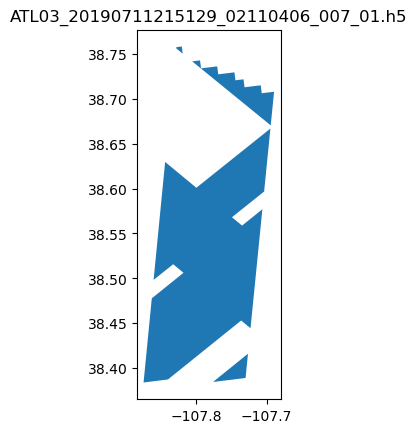

# Hone in on single granule as a pandas series
i = 0
granule_gdf = gf_is2.iloc[[i]]
granule = gf_is2.iloc[i]
granule_gdf.plot()  # needs to be a geodataframe
plt.title(granule.id);
# The icesat-2 track trends N-S, and is crossed by multiple GEDI tracks, resulting in the crosshatched appearance

data_is2 = coincident.io.sliderule.subset_atl06(
    granule_gdf,
    include_worldcover=True,
)

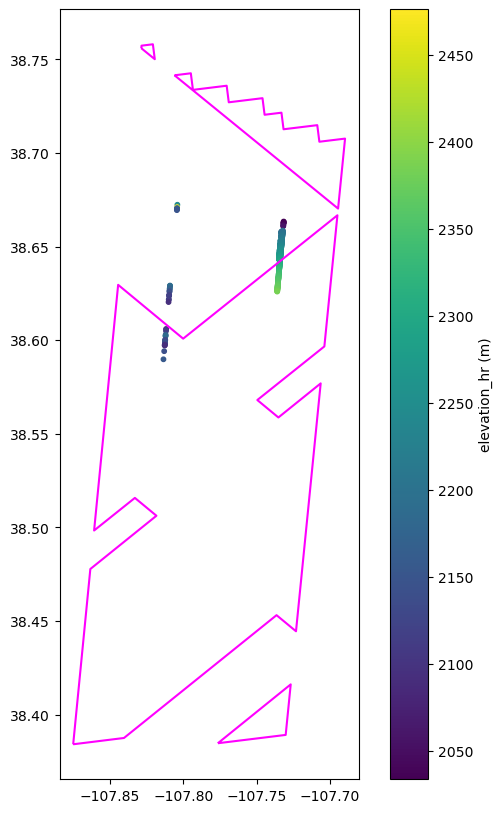

# Plot this data and overlay footprint
fig, ax = plt.subplots(figsize=(8, 10))
plt.scatter(
    x=data_is2.geometry.x,
    y=data_is2.geometry.y,
    c=data_is2.h_li,
    s=10,
)
granule_gdf.dissolve().boundary.plot(ax=ax, color="magenta")
cb = plt.colorbar()
cb.set_label("elevation_hr (m)")

Note

sliderule gets data from the envelope of multipolygon, not only data within intersecting GEDI tracks. Along-track gaps are where there is missing data.

# Here, we specify aoi=granule_gdf to only return GEDI data
# in our icesat-2 track of interest
data_gedi = coincident.io.sliderule.subset_gedi02a(
    gf_gedi,
    aoi=granule_gdf,
    include_worldcover=True,
)

data_gedi

	orbit	track	elevation_lm	solar_elevation	shot_number	flags	worldcover.time_ns	worldcover.fileid	elevation_hr	worldcover.value	beam	sensitivity	srcid	geometry
time_ns
2019-08-13 00:26:32.668279296	3775	3020	1680.471191	18.899099	37750600300666419	130	[2021-06-30T00:00:00.000000000]	[17179869184]	1684.217529	Grassland	6	0.966716	121	POINT (-107.73893 38.75799)
2019-08-13 00:26:32.684807424	3775	3020	1681.909668	18.898209	37750600300666421	130	[2021-06-30T00:00:00.000000000]	[17179869184]	1686.067993	Grassland	6	0.963738	121	POINT (-107.73791 38.75734)
2019-08-13 00:26:32.693071360	3775	3020	1685.991699	18.897764	37750600300666422	130	[2021-06-30T00:00:00.000000000]	[17179869184]	1689.700439	Grassland	6	0.960438	121	POINT (-107.7374 38.75701)
2019-08-13 00:26:32.701335552	3775	3020	1688.838013	18.897318	37750600300666423	130	[2021-06-30T00:00:00.000000000]	[17179869184]	1692.659180	Grassland	6	0.966184	121	POINT (-107.7369 38.75669)
2019-08-13 00:26:32.709599488	3775	3020	1690.289673	18.896873	37750600300666424	130	[2021-06-30T00:00:00.000000000]	[17179869184]	1693.998413	Grassland	6	0.966138	121	POINT (-107.73639 38.75636)
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2019-08-20 14:38:27.640957696	3893	583	2454.182129	23.838963	38930000200401361	130	[2021-06-30T00:00:00.000000000]	[25769803776]	2458.303223	Shrubland	0	0.936784	159	POINT (-107.69186 38.61128)
2019-08-20 14:38:27.649223680	3893	583	2453.085205	23.839365	38930000200401362	130	[2021-06-30T00:00:00.000000000]	[25769803776]	2456.831787	Grassland	0	0.916494	159	POINT (-107.69135 38.6116)
2019-08-20 14:38:27.657489152	3893	583	2451.478516	23.839769	38930000200401363	130	[2021-06-30T00:00:00.000000000]	[25769803776]	2455.000244	Grassland	0	0.918110	159	POINT (-107.69085 38.61193)
2019-08-20 14:38:27.665753088	3893	583	2449.634277	23.840174	38930000200401364	130	[2021-06-30T00:00:00.000000000]	[25769803776]	2453.418213	Grassland	0	0.918575	159	POINT (-107.69034 38.61226)
2019-08-20 14:38:27.674017280	3893	583	2447.391357	23.840578	38930000200401365	130	[2021-06-30T00:00:00.000000000]	[25769803776]	2450.875488	Grassland	0	0.913983	159	POINT (-107.68983 38.61259)

10225 rows × 14 columns

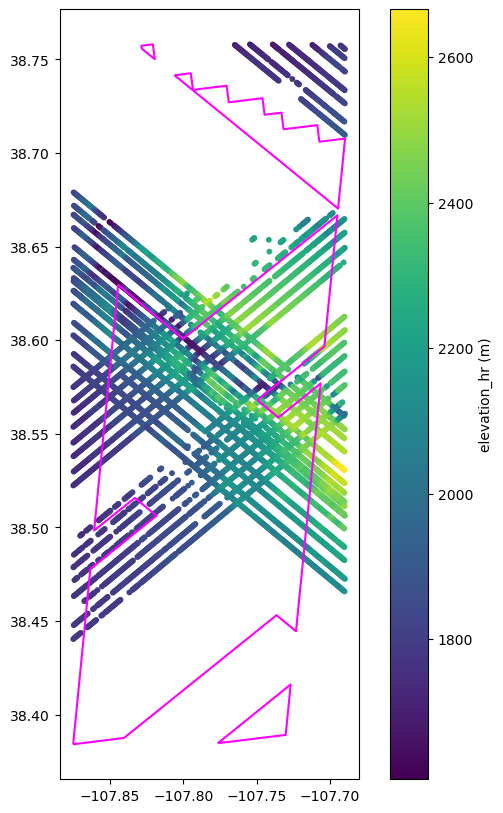

# Plot this data and overlay footprint
fig, ax = plt.subplots(figsize=(8, 10))
plt.scatter(
    x=data_gedi.geometry.x,
    y=data_gedi.geometry.y,
    c=data_gedi.elevation_hr,
    s=10,
)
granule_gdf.dissolve().boundary.plot(ax=ax, color="magenta")
cb = plt.colorbar()
cb.set_label("elevation_hr (m)")

NOTE Like ICESat-2, it’s possible to have points falling outside the estimated footprints

Spatial join: nearest points

NOTE: we will not worry about the difference in time of acquisition between adjacent points for now

utm_crs = granule_gdf.estimate_utm_crs()
data_is2_utm = data_is2.to_crs(utm_crs)
data_gedi_utm = data_gedi.to_crs(utm_crs)

# find nearest IS2 point to each GEDI
close_gedi = data_gedi_utm.sjoin_nearest(
    data_is2_utm,
    how="left",
    max_distance=100,  # at most 100m apart
    distance_col="distances",
)
# index is GEDI subset (with _left added), with _right appended to is2 columns + Distances in meters
close_gedi = close_gedi[close_gedi["distances"].notna()]

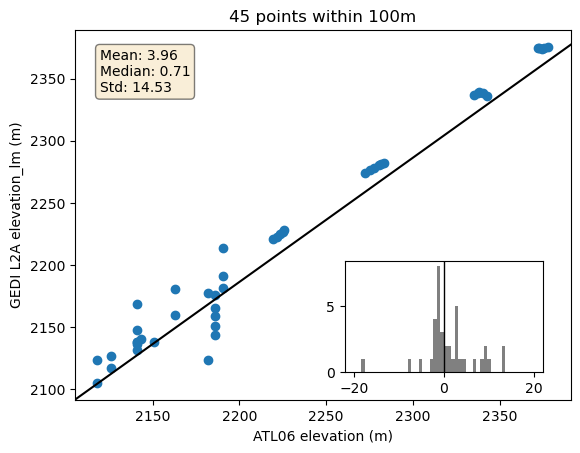

fig, ax = plt.subplots()
plt.scatter(close_gedi.h_li, close_gedi.elevation_lm)
ax.axline((0, 0), slope=1, color="k", transform=ax.transAxes)
plt.xlabel("ATL06 elevation (m)")
plt.ylabel("GEDI L2A elevation_lm (m)")
plt.title(f"{len(close_gedi)} points within 100m")


# Add statistics and inset histogram to plot
inset_ax = inset_axes(ax, width="40%", height="30%", borderpad=2, loc="lower right")


residuals = close_gedi.h_li - close_gedi.elevation_lm
mean_residual = np.mean(residuals)
median_residual = np.median(residuals)
std_residual = np.std(residuals)
textstr = "\n".join(
    (
        f"Mean: {mean_residual:.2f}",
        f"Median: {median_residual:.2f}",
        f"Std: {std_residual:.2f}",
    )
)
props = dict(boxstyle="round", facecolor="wheat", alpha=0.5)
ax.text(
    0.05,
    0.95,
    textstr,
    transform=ax.transAxes,
    fontsize=10,
    verticalalignment="top",
    bbox=props,
)

_ = inset_ax.hist(residuals, bins=50, range=(-20, 20), color="gray")
inset_ax.axvline(0, color="k", linestyle="-", linewidth=1);

Sample 3DEP

Sample 3DEP 1m DEM at the subset of GEDI Points

# Warning: this relies on TNM API, which is often down :(
close_gedi_3dep = coincident.io.sliderule.sample_raster(
    close_gedi,
    asset_key="usgs3dep-1meter-dem",
    # Restrict to only DEMs derived from specific WESM LiDAR project
    project_name=gf_lidar["project"].iloc[0],
)

# Add 3DEP elevation values to existing dataframe
close_gedi["elevation_3dep"] = close_gedi_3dep.value.values

# Geometries of nearest IS2 points
close_is2 = data_is2_utm.loc[close_gedi.time_ns_right]

# Sample 3DEP at the subset of GEDI Points
close_is2_3dep = coincident.io.sliderule.sample_raster(
    close_is2,
    asset_key="usgs3dep-1meter-dem",
    project_name=gf_lidar["project"].iloc[0],
)

close_is2["elevation_3dep"] = close_is2_3dep.value.values

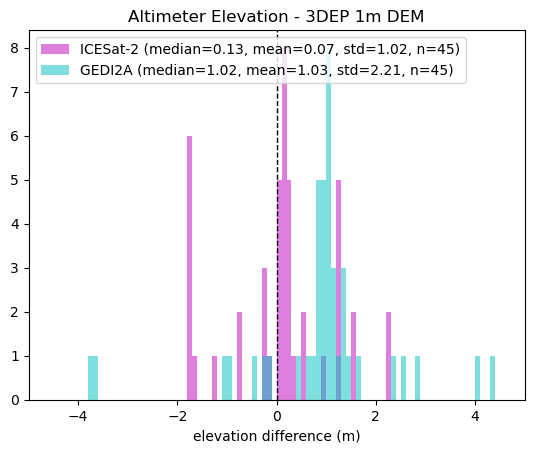

plt.axvline(0, color="k", linestyle="dashed", linewidth=1)

diff_3dep = close_is2.h_li.values - close_is2.elevation_3dep
label = f"ICESat-2 (median={np.nanmedian(diff_3dep):.2f}, mean={np.nanmean(diff_3dep):.2f}, std={np.nanstd(diff_3dep):.2f}, n={len(diff_3dep)})"
plt.hist(diff_3dep, range=[-5, 5], bins=100, color="m", alpha=0.5, label=label)

diff_3dep = close_gedi.elevation_lm.values - close_gedi.elevation_3dep
label = f"GEDI2A (median={np.nanmedian(diff_3dep):.2f}, mean={np.nanmean(diff_3dep):.2f}, std={np.nanstd(diff_3dep):.2f}, n={len(diff_3dep)})"
plt.hist(diff_3dep, range=[-5, 5], bins=100, color="c", alpha=0.5, label=label)

plt.xlabel("elevation difference (m)")
plt.title("Altimeter Elevation - 3DEP 1m DEM")
plt.xlim(-5, 5)
plt.legend(loc="upper left");
