Comparing Elevation Measurements#

Once you have an area of interest with multiple overlapping DEMs and/or laser altimetry measurements, you can quickly compare elevation values. coincident supports a main plotting panel for elevation comparisons, as well as dynamic boxplots and histograms for elevation differences over various terrain characteristics and land cover types.

This notebook highlights the following functions:

  • coincident.plot.compare_dems

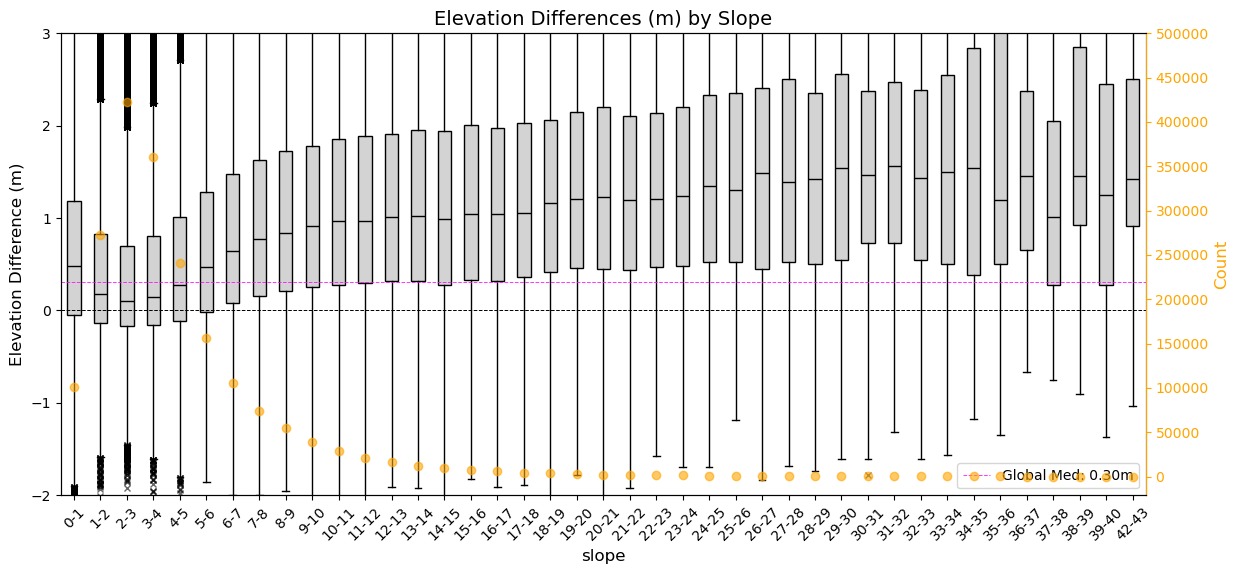

  • coincident.plot.boxplot_slope

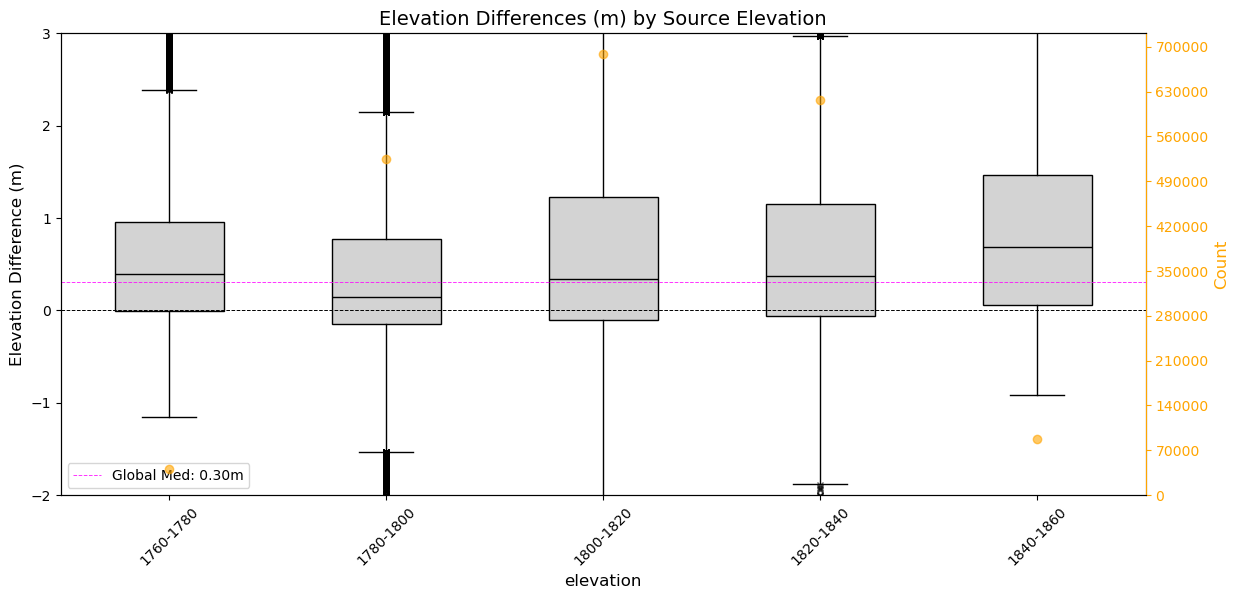

  • coincident.plot.boxplot_elevation

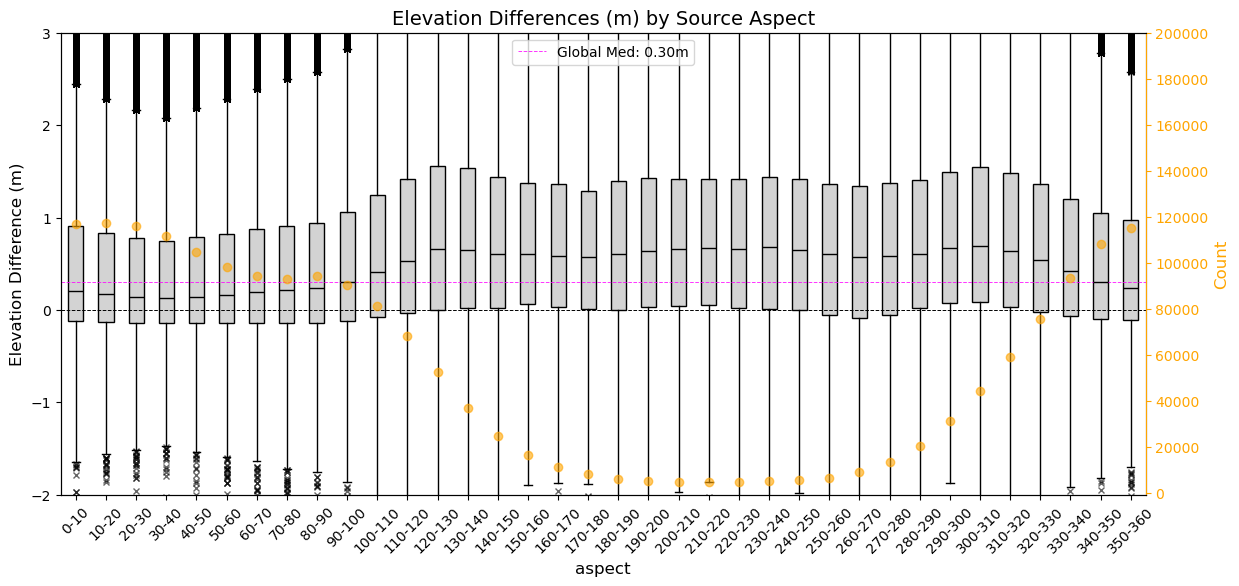

  • coincident.plot.boxplot_aspect

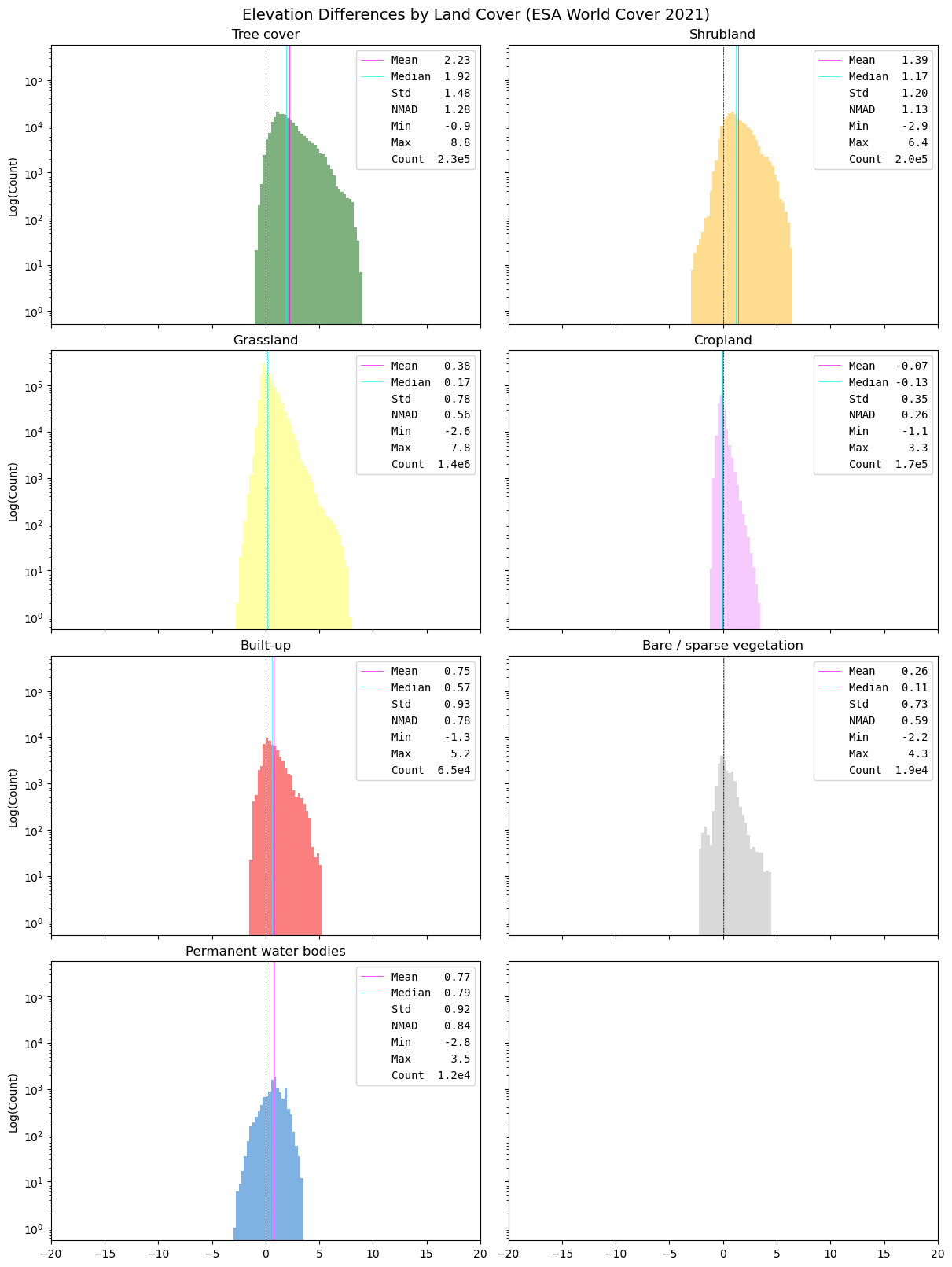

  • coincident.plot.hist_esa

Warning

Plotting routines are currently only tested for comparing datasets in EPSG:7912 (ITRF 2014)

import coincident
import geopandas as gpd
from shapely.geometry import box
import rioxarray as rxr
import numpy as np
import matplotlib.pyplot as plt
from rasterio.enums import Resampling

/home/docs/checkouts/readthedocs.org/user_builds/coincident/checkouts/stable/src/coincident/io/download.py:25: TqdmExperimentalWarning: Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)
  from tqdm.autonotebook import tqdm

%matplotlib inline
# %config InlineBackend.figure_format = 'retina'

Load reference DEM#

workunit = "CO_WestCentral_2019"
df_wesm = coincident.search.wesm.read_wesm_csv()
gf_lidar = coincident.search.wesm.load_by_fid(
    df_wesm[df_wesm.workunit == workunit].index
)

gf_lidar
workunit workunit_id project project_id start_datetime end_datetime ql spec p_method dem_gsd_meters ... seamless_category seamless_reason lpc_link sourcedem_link metadata_link geometry collection datetime dayofyear duration
0 CO_WestCentral_2019 175984 CO_WestCentral_2019_A19 175987 2019-08-21 2019-09-19 QL 2 USGS Lidar Base Specification 1.3 linear-mode lidar 1.0 ... Meets Meets 3DEP seamless DEM requirements https://rockyweb.usgs.gov/vdelivery/Datasets/S... https://prd-tnm.s3.amazonaws.com/index.html?pr... https://prd-tnm.s3.amazonaws.com/index.html?pr... MULTIPOLYGON (((-106.13571 38.4146, -106.1702 ... 3DEP 2019-09-04 12:00:00 247 29

1 rows × 33 columns

# We will examine the 'sourcedem' 1m
# NOTE: it's important to note the *vertical* CRS of the data
gf_lidar.iloc[0]

workunit                                            CO_WestCentral_2019
workunit_id                                                      175984
project                                         CO_WestCentral_2019_A19
project_id                                                       175987
start_datetime                                      2019-08-21 00:00:00
end_datetime                                        2019-09-19 00:00:00
ql                                                                 QL 2
spec                                  USGS Lidar Base Specification 1.3
p_method                                              linear-mode lidar
dem_gsd_meters                                                      1.0
horiz_crs                                                          6350
vert_crs                                                           5703
geoid                                                          GEOID12B
lpc_pub_date                                        2021-01-30 00:00:00
lpc_update                                                          NaT
lpc_category                                                      Meets
lpc_reason                                  Meets 3DEP LPC requirements
sourcedem_pub_date                                  2021-01-29 00:00:00
sourcedem_update                                                    NaT
sourcedem_category                                                Meets
sourcedem_reason                     Meets 3DEP source DEM requirements
onemeter_category                                                 Meets
onemeter_reason                         Meets 3DEP 1-m DEM requirements
seamless_category                                                 Meets
seamless_reason                    Meets 3DEP seamless DEM requirements
lpc_link              https://rockyweb.usgs.gov/vdelivery/Datasets/S...
sourcedem_link        https://prd-tnm.s3.amazonaws.com/index.html?pr...
metadata_link         https://prd-tnm.s3.amazonaws.com/index.html?pr...
geometry              MULTIPOLYGON (((-106.1357105581 38.4146013052,...
collection                                                         3DEP
datetime                                            2019-09-04 12:00:00
dayofyear                                                           247
duration                                                             29
Name: 0, dtype: object

# NOTE: since we're going to compare to satellite altimetry, let's convert first to EPSG:7912 !
# GDAL / PROJ will use the following transform by default
!projinfo -s EPSG:6350+5703 -t EPSG:7912 -q -o proj

+proj=pipeline
  +step +inv +proj=aea +lat_0=23 +lon_0=-96 +lat_1=29.5 +lat_2=45.5 +x_0=0 +y_0=0
        +ellps=GRS80
  +step +proj=vgridshift +grids=us_noaa_g2018u0.tif +multiplier=1
  +step +proj=cart +ellps=GRS80
  +step +inv +proj=helmert +x=1.0053 +y=-1.90921 +z=-0.54157 +rx=0.02678138
        +ry=-0.00042027 +rz=0.01093206 +s=0.00036891 +dx=0.00079 +dy=-0.0006
        +dz=-0.00144 +drx=6.667e-05 +dry=-0.00075744 +drz=-5.133e-05
        +ds=-7.201e-05 +t_epoch=2010 +convention=coordinate_frame
  +step +inv +proj=cart +ellps=GRS80
  +step +proj=unitconvert +xy_in=rad +xy_out=deg
  +step +proj=axisswap +order=2,1

Now, let’s grab the vendor DEM products for two arbitrary tiles of this flight to look at elevation differences between the aerial LIDAR derved DEM, Copernicus GLO-30 DEM, ICESat-2 elevations, and GEDI elevations.

# We will rely on GDAL to do this reprojection
# gdalvsi = "/vsicurl?empty_dir=yes&url="
gdalvsi = "/vsicurl/"
url_tile_1 = f"{gdalvsi}https://prd-tnm.s3.amazonaws.com/StagedProducts/Elevation/OPR/Projects/CO_WestCentral_2019_A19/CO_WestCentral_2019/TIFF/USGS_OPR_CO_WestCentral_2019_A19_be_w1032n1780.tif"
url_tile_2 = f"{gdalvsi}https://prd-tnm.s3.amazonaws.com/StagedProducts/Elevation/OPR/Projects/CO_WestCentral_2019_A19/CO_WestCentral_2019/TIFF/USGS_OPR_CO_WestCentral_2019_A19_be_w1032n1779.tif"

# First build a mosaic in native 3D CRS
!gdalbuildvrt -q -a_srs EPSG:6350+5703 /tmp/mosaic.vrt '{url_tile_1}' '{url_tile_2}'

# Then reproject
!GDAL_DISABLE_READDIR_ON_OPEN=EMPTY_DIR gdalwarp -q -overwrite -t_srs EPSG:7912 -r bilinear /tmp/mosaic.vrt /tmp/mosaic_7912.tif

# Open our 'reference' DEM
da_lidar = rxr.open_rasterio("/tmp/mosaic_7912.tif", masked=True).squeeze()
da_lidar

<xarray.DataArray (y: 1917, x: 1465)> Size: 11MB
[2808405 values with dtype=float32]
Coordinates:
  * y            (y) float64 15kB 38.47 38.47 38.47 38.47 ... 38.46 38.46 38.46
  * x            (x) float64 12kB -108.0 -108.0 -108.0 ... -108.0 -108.0 -108.0
    band         int64 8B 1
    spatial_ref  int64 8B 0
Attributes:
    AREA_OR_POINT:  Area
    scale_factor:   1.0
    add_offset:     0.0

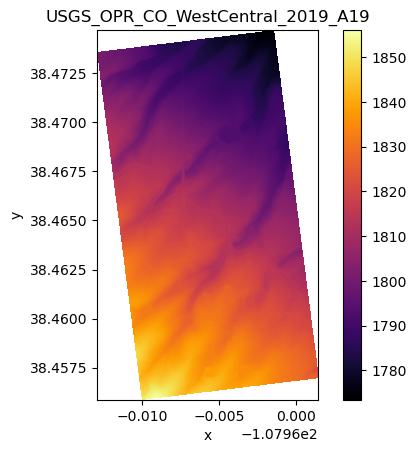

# Plot a single DEM
ax = coincident.plot.plot_dem(da_lidar, title="USGS_OPR_CO_WestCentral_2019_A19");
../_images/ac3c8aa152a17fc91c0eb134a15178f912c287f4187f5d15779b2515f98e9140.png

Load secondary DEMs#

Note

Currently coincident facilitates loading select global DEMs in EPSG:7912, if your dataset is not in that CRS be sure to first reproject your data

# search geodataframe to grab the COP30 DEM
bbox_tile = da_lidar.rio.bounds()
poly_tile = box(*bbox_tile)
gf_tile = gpd.GeoDataFrame(geometry=[poly_tile], crs=da_lidar.rio.crs)

# NOTE: this is 30m data, but we are going to resample it to 1m to match our lidar
da_cop = coincident.io.xarray.load_dem_7912("cop30", aoi=gf_tile)
da_cop

<xarray.DataArray 'band_data' (y: 69, x: 53)> Size: 15kB
array([[1800.7252, 1800.2207, 1799.4016, ..., 1773.1454, 1770.5667,
        1770.0399],
       [1800.5754, 1799.8733, 1799.3422, ..., 1774.0353, 1771.1886,
        1770.74  ],
       [1800.5575, 1799.7347, 1799.4817, ..., 1772.8221, 1772.1632,
        1771.3894],
       ...,
       [1859.3857, 1858.9048, 1857.8425, ..., 1829.5653, 1828.9321,
        1828.7308],
       [1861.8115, 1861.497 , 1860.04  , ..., 1829.9324, 1830.4056,
        1830.1598],
       [1863.0483, 1862.5264, 1860.8612, ..., 1830.5692, 1830.6556,
        1830.5651]], shape=(69, 53), dtype=float32)
Coordinates:
  * y            (y) float64 552B 38.47 38.47 38.47 38.47 ... 38.46 38.46 38.46
  * x            (x) float64 424B -108.0 -108.0 -108.0 ... -108.0 -108.0 -108.0
    band         int64 8B 1
    spatial_ref  int64 8B 0
Attributes:
    AREA_OR_POINT:  Point
# Handy to have an informative name for plots
da_cop.name = "elevation"

da_cop_r = da_cop.rio.reproject_match(
    da_lidar,
    resampling=Resampling.bilinear,
).where(da_lidar.notnull())

da_cop_r

<xarray.DataArray 'elevation' (y: 1917, x: 1465)> Size: 11MB
array([[nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       ...,
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan]],
      shape=(1917, 1465), dtype=float32)
Coordinates:
  * y            (y) float64 15kB 38.47 38.47 38.47 38.47 ... 38.46 38.46 38.46
  * x            (x) float64 12kB -108.0 -108.0 -108.0 ... -108.0 -108.0 -108.0
    band         int64 8B 1
    spatial_ref  int64 8B 0
Attributes:
    AREA_OR_POINT:  Point
    _FillValue:     nan

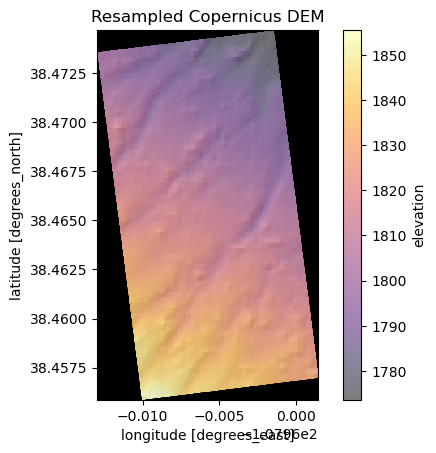

# Plot a single DEM with hillshade
# da_hillshade = coincident.io.gdal.gdaldem(da_cop_r, subcommand="hillshade")
da_hillshade = coincident.io.gdal.gdaldem(da_lidar, subcommand="hillshade")

ax = coincident.plot.plot_dem(
    da_cop_r,
    title="Resampled Copernicus DEM",
    add_hillshade=True,
)
../_images/b85ee97e2e99a5a7373ab02c2f068c382dbc51a49c1f4840276158681d5dc36a.png
# Get GEDI
gf_gedi = coincident.search.search(
    dataset="gedi",
    intersects=gf_tile,
)
data_gedi = coincident.io.sliderule.subset_gedi02a(
    gf_gedi, gf_tile, include_worldcover=True
)

# Get ICESAT-2
gf_is2 = coincident.search.search(
    dataset="icesat-2",
    intersects=gf_tile,
)
data_is2 = coincident.io.sliderule.subset_atl06(
    gf_is2, gf_tile, include_worldcover=True
)

Alert <-7>: Failure on resource ATL06_20190913063941_11790402_007_02.h5 beam gt2l: H5Coro::Future read failure on gt2l/land_ice_segments/latitude

Alert <-7>: Failure on resource ATL06_20190913063941_11790402_007_02.h5 beam gt1l: H5Coro::Future read failure on gt1l/land_ice_segments/latitude

Alert <-7>: Failure on resource ATL06_20190913063941_11790402_007_02.h5 beam gt3r: H5Coro::Future read failure on gt3r/land_ice_segments/latitude

Alert <-7>: Failure on resource ATL06_20190913063941_11790402_007_02.h5 beam gt2r: H5Coro::Future read failure on gt2r/land_ice_segments/latitude

Alert <-7>: Failure on resource ATL06_20190913063941_11790402_007_02.h5 beam gt1r: H5Coro::Future read failure on gt1r/land_ice_segments/latitude

Alert <-7>: Failure on resource ATL06_20190913063941_11790402_007_02.h5 beam gt3l: H5Coro::Future read failure on gt3l/land_ice_segments/latitude

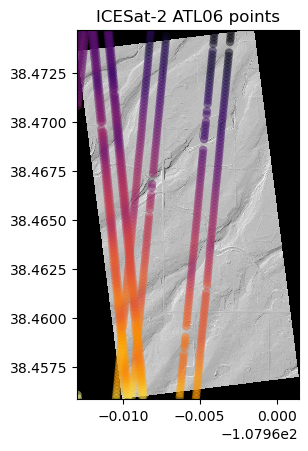

coincident.plot.plot_altimeter_points(
    data_is2, "h_li", da_hillshade=da_hillshade, title="ICESat-2 ATL06 points"
);
../_images/3b48d94b9f1eb3fe0fc801c2d7818601e78776734a472b1dcffb0fa97a79c2f3.png

Main Elevation Comparison Panel#

‘coincident’ supports a main compare_dems function that allows you to compare multiple DEMs and altimetry points in a single panel. This function dynamically adjusts based on the number of datasets provided.

Note

compare_dems assumes that all DEMs are in the same coordinate reference system (CRS) and aligned. A minimum of two DEMs must be provided and a maximum of 5 total datasets (datasets being DEMs and GeoDataFrames of altimetry points) can be provided.

# dictionary of DEMs to compare, where the first DEM in the list is the 'source' DEM
dem_dict = {"3DEP DTM": da_lidar, "COP30": da_cop_r}
# dictionary of GeoDataFrames with altimetry points to compare
# where the key is the name/plot title of the dataset and the value is a tuple of the respective
# GeoDataFrame and the column name of the elevation values of interest
dicts_gds = {"IS2 ATL06": (data_is2, "h_li"), "GEDI L2A": (data_gedi, "elevation_lm")}
axd = coincident.plot.compare_dems(
    dem_dict,
    dicts_gds,
    add_hillshade=True,
    altimetry_basemap="Esri.WorldImagery",
    # altimetry_basemap="hillshade",
    diff_clim=(-2.5, 2.5),
    altimetry_pointsize=20,
)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
Cell In[18], line 7
      3 # dictionary of GeoDataFrames with altimetry points to compare
      4 # where the key is the name/plot title of the dataset and the value is a tuple of the respective
      5 # GeoDataFrame and the column name of the elevation values of interest
      6 dicts_gds = {"IS2 ATL06": (data_is2, "h_li"), "GEDI L2A": (data_gedi, "elevation_lm")}
----> 7 axd = coincident.plot.compare_dems(
      8     dem_dict,
      9     dicts_gds,
     10     add_hillshade=True,

File ~/checkouts/readthedocs.org/user_builds/coincident/checkouts/stable/src/coincident/plot/matplotlib.py:517, in compare_dems(dem_dict, gdf_dict, add_hillshade, downsample_factor, altimetry_basemap, elevation_cmap, elevation_clim, diff_cmap, diff_clim, altimetry_pointsize, figsize, suptitle)
    512         if gf.crs != first_dem.rio.crs:
    513             error_message = (
    514                 f"All datasets must have the same CRS. "
    515                 f"GeoDataFrame {name} has CRS {gf.crs}, but first DEM has CRS {first_dem.rio.crs}"
    516             )
--> 517             raise ValueError(error_message)
    519 # Scale figure size with number of columns
    520 if figsize is None:

ValueError: All datasets must have the same CRS. GeoDataFrame IS2 ATL06 has CRS {"$schema": "https://proj.org/schemas/v0.7/projjson.schema.json", "type": "GeographicCRS", "name": "ITRF2020", "datum": {"type": "DynamicGeodeticReferenceFrame", "name": "International Terrestrial Reference Frame 2020", "frame_reference_epoch": 2015, "ellipsoid": {"name": "GRS 1980", "semi_major_axis": 6378137, "inverse_flattening": 298.257222101}}, "coordinate_system": {"subtype": "ellipsoidal", "axis": [{"name": "Geodetic latitude", "abbreviation": "Lat", "direction": "north", "unit": "degree"}, {"name": "Geodetic longitude", "abbreviation": "Lon", "direction": "east", "unit": "degree"}, {"name": "Ellipsoidal height", "abbreviation": "h", "direction": "up", "unit": "metre"}]}, "scope": "Geodesy.", "area": "World.", "bbox": {"south_latitude": -90, "west_longitude": -180, "north_latitude": 90, "east_longitude": 180}, "id": {"authority": "EPSG", "code": 9989}}, but first DEM has CRS EPSG:7912

Dynamic Elevation Difference Boxplots Based on Terrain Variables (slope, elevation, aspect)#

coincident allows users to dynamically plot elevation differences based on grouped data such as slope values. In these functions (that are wrappers for the generalized coincident.plot.boxplot_terrain_diff function), the user provides a reference DEM and one other DEM or GeoDataFrame with elevation values to compare to. These function assumes that the reference DEM has the respective terrain variable (slope, aspect, etc.) of interest.

Note

Boxplots will only be generated with groups of value counts greater than 30. Dynamic ylims will be fit to the IQRs of the boxplots.

# These routines assume rectilinear data, so we first convert to UTM
crs_utm = da_lidar.rio.estimate_utm_crs()
ds_lidar_utm = da_lidar.rio.reproject(crs_utm).to_dataset(name="elevation")
ds_cop_utm = da_cop_r.rio.reproject(crs_utm).to_dataset(name="elevation")

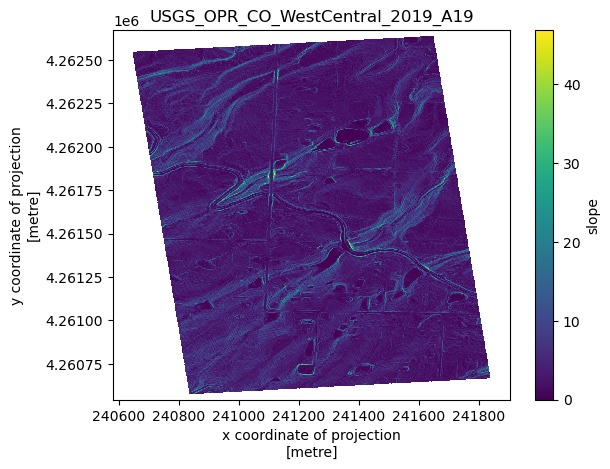

slope = coincident.io.gdal.gdaldem(ds_lidar_utm.elevation, "slope")
ds_lidar_utm["slope"] = slope

_, ax = plt.subplots()
ds_lidar_utm.slope.plot.imshow(ax=ax)
ax.set_title("USGS_OPR_CO_WestCentral_2019_A19");
../_images/1d9cd91fdd1c691734e17917f2291286862d46b3a8489f6caddb8742df595ad7.png
ax_boxplot_dems = coincident.plot.boxplot_slope([ds_lidar_utm, ds_cop_utm])
../_images/aa7cb1db4a8f63f897e4d305d9301857869d76b07de6febc210bc935b32556be.png
# we also support elevation differences based on elevation bins
# grouped on the reference DEM's elevation values
ax_elev = coincident.plot.boxplot_elevation(
    [ds_lidar_utm, ds_cop_utm], elevation_bins=np.arange(1700, 2000, 20)
)
../_images/9d9ed660fc109f02480bd185151f37e3e93a82f119fa1dcea578eadb9f44c645.png

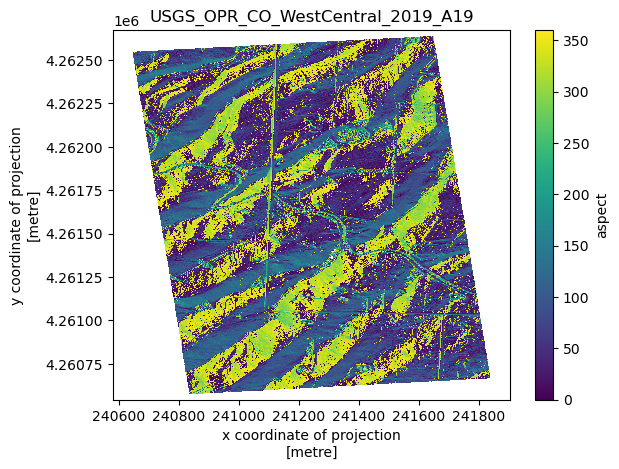

# lastly for the boxplots, let's look at aspect
aspect = coincident.io.gdal.gdaldem(ds_lidar_utm.elevation, "aspect")
ds_lidar_utm["aspect"] = aspect

_, ax = plt.subplots()
ds_lidar_utm.aspect.plot.imshow(ax=ax)
ax.set_title("USGS_OPR_CO_WestCentral_2019_A19");
../_images/058f24f60c74af9a1e2e38c6e5d1b35f08ee54044bebd2c34cd283862f1a9280.png
ax_aspect = coincident.plot.boxplot_aspect([ds_lidar_utm, ds_cop_utm])
../_images/6f93b1097649f6f4dcad14a37a4aa8a30cd4c2a51a4cd2081e99f025e9670e04.png

Histograms of Elevation Differences over Land Cover#

Plot elevation differences between DEMs or point data, grouped by ESA World Cover 2020 land cover class

Note

Histograms will only be generated with groups of value counts greater than a user-defined threshold (default is 30).

ax_lulc_cop30 = coincident.plot.hist_esa(
    [da_lidar.to_dataset(name="elevation"), da_cop_r.to_dataset(name="elevation")]
)
../_images/b650986fa7a6c4d1726fd20de4f7b43a6666ea53054aeb36d6d06ea3586620cb.png
